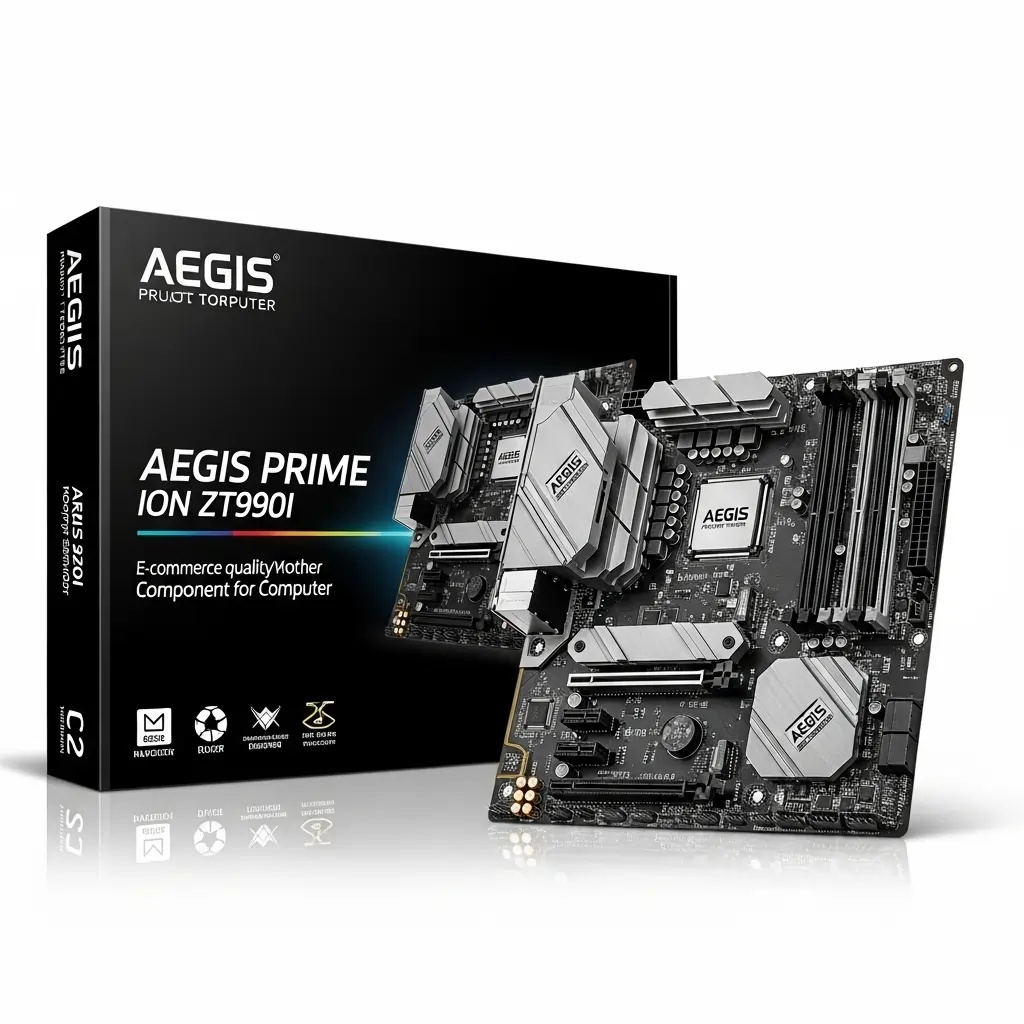

Aegis Prime Ion ZT990I

(59)

In Stock

| >10 in Storage

549€*

* +19% VAT and Delivery Costs

A premium Mini-ITX motherboard for the Zentheon platform, designed to house top-tier CPUs in the smallest possible form factor.

Technical Data

Socket	AMZ5
Chipset	ZT990 Enthusiast
Form Factor	Mini-ITX
Memory Support	2x DDR5, 96GB Max, Up to 8200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16
Storage M2	1x PCIe 5.0 x4, 2x PCIe 4.0 x4
Storage SATA	2x SATA 6Gb/s
Power Delivery	12+2+1 Phase, 110A Stages
Networking LAN	1x 5GbE
Networking WIFI	Wi-Fi 7
Audio	Aegis SupremeAudio 1220 8-Channel
Rear IOPorts	2x USB4 (Type-C), 2x USB 3.2 Gen 2, 2x USB 3.2 Gen 1

Product Description

The Aegis Prime Ion ZT990I is a marvel of engineering, cramming the features of a full-sized enthusiast board into a Mini-ITX layout. It utilizes a 12-layer PCB and a direct 12+2+1 phase VRM to power even the Zentheon X9 9990X3D. Both the single PCIe x16 slot and the primary M.2 slot support the full PCIe 5.0 standard. To manage thermals, it includes a stacked heatsink design for the M.2 drives and chipset. With 5 GbE LAN, Wi-Fi 7, and USB4, this board makes zero compromises on performance or connectivity.

Technical Data

Socket	AMZ5
Chipset	ZT990 Enthusiast
Form Factor	Mini-ITX
Memory Support	2x DDR5, 96GB Max, Up to 8200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16
Storage M2	1x PCIe 5.0 x4, 2x PCIe 4.0 x4
Storage SATA	2x SATA 6Gb/s
Power Delivery	12+2+1 Phase, 110A Stages
Networking LAN	1x 5GbE
Networking WIFI	Wi-Fi 7
Audio	Aegis SupremeAudio 1220 8-Channel
Rear IOPorts	2x USB4 (Type-C), 2x USB 3.2 Gen 2, 2x USB 3.2 Gen 1

Product Description

The Aegis Prime Ion ZT990I is a marvel of engineering, cramming the features of a full-sized enthusiast board into a Mini-ITX layout. It utilizes a 12-layer PCB and a direct 12+2+1 phase VRM to power even the Zentheon X9 9990X3D. Both the single PCIe x16 slot and the primary M.2 slot support the full PCIe 5.0 standard. To manage thermals, it includes a stacked heatsink design for the M.2 drives and chipset. With 5 GbE LAN, Wi-Fi 7, and USB4, this board makes zero compromises on performance or connectivity.
