Tectonic Systems Magna HL870

(83)

In Stock

| >10 in Storage

459€*

* +19% VAT and Delivery Costs

A high-performance ATX motherboard for Helion and Quantum Leap CPUs. It is optimized for hybrid-core architectures and high-speed gaming.

Technical Data

Socket	QLGA-1851
Chipset	HL870 Performance
Form Factor	ATX
Memory Support	4x DDR5, 192GB Max, Up to 7200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1
Storage M2	1x PCIe 5.0 x4, 3x PCIe 4.0 x4
Storage SATA	6x SATA 6Gb/s
Power Delivery	18+1+1 Phase, 90A Stages
Networking LAN	1x 2.5GbE
Networking WIFI	Wi-Fi 6E
Audio	Tectonic RealAudio 7.1 HD
Rear IOPorts	1x USB 3.2 Gen 2x2 (Type-C), 5x USB 3.2 Gen 2, 4x USB 2.0, HDMI, DisplayPort

Product Description

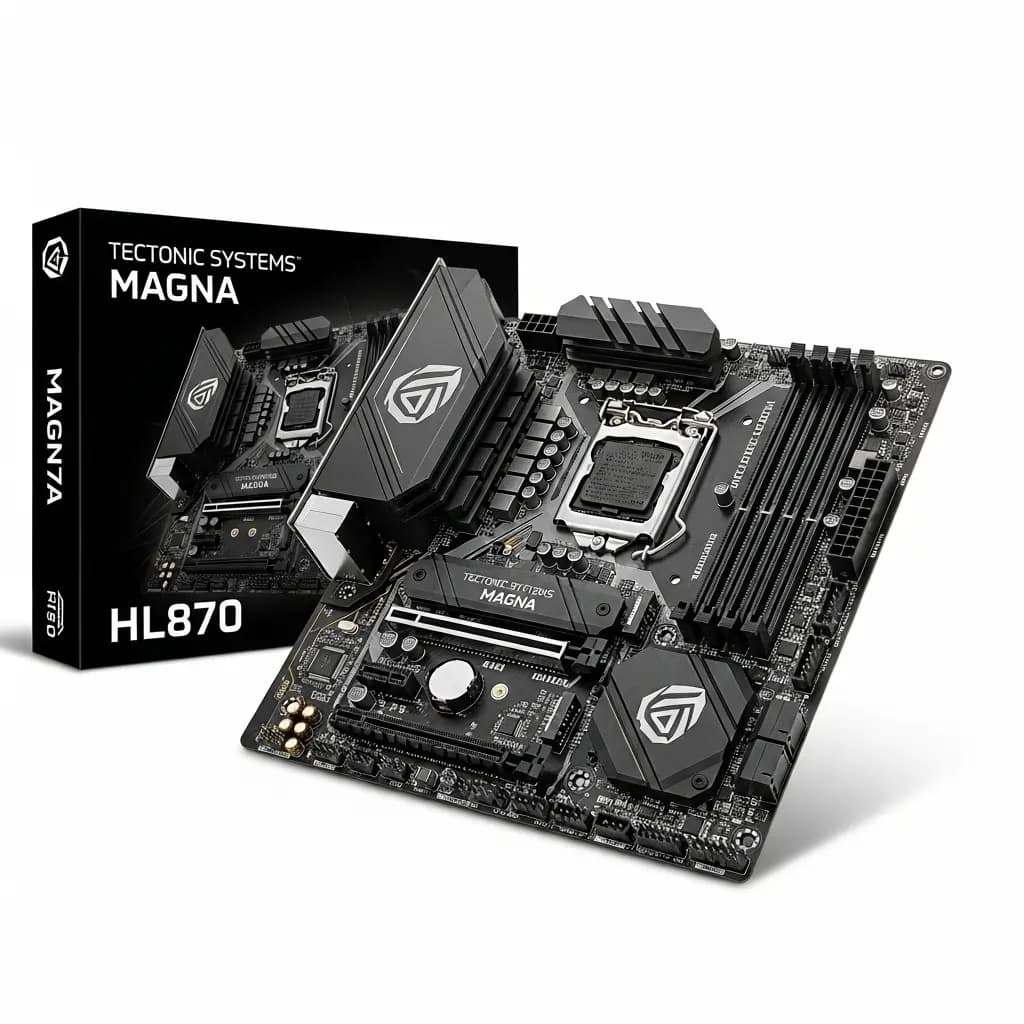

The Tectonic Systems Magna HL870 is built to unleash the full potential of next-generation hybrid CPUs. It features a robust 18+1+1 phase VRM to handle the demanding power states of Helion processors. The board provides one PCIe 5.0 x16 slot for the latest graphics cards and four M.2 slots, including one at PCIe 5.0 speeds for an ultra-fast OS drive. Its advanced cooling solution includes extended VRM heatsinks and multiple M.2 shields. With 2.5 GbE LAN and Wi-Fi 6E, it offers fast, reliable networking for online gaming and streaming.

Technical Data

Socket	QLGA-1851
Chipset	HL870 Performance
Form Factor	ATX
Memory Support	4x DDR5, 192GB Max, Up to 7200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1
Storage M2	1x PCIe 5.0 x4, 3x PCIe 4.0 x4
Storage SATA	6x SATA 6Gb/s
Power Delivery	18+1+1 Phase, 90A Stages
Networking LAN	1x 2.5GbE
Networking WIFI	Wi-Fi 6E
Audio	Tectonic RealAudio 7.1 HD
Rear IOPorts	1x USB 3.2 Gen 2x2 (Type-C), 5x USB 3.2 Gen 2, 4x USB 2.0, HDMI, DisplayPort

Product Description

The Tectonic Systems Magna HL870 is built to unleash the full potential of next-generation hybrid CPUs. It features a robust 18+1+1 phase VRM to handle the demanding power states of Helion processors. The board provides one PCIe 5.0 x16 slot for the latest graphics cards and four M.2 slots, including one at PCIe 5.0 speeds for an ultra-fast OS drive. Its advanced cooling solution includes extended VRM heatsinks and multiple M.2 shields. With 2.5 GbE LAN and Wi-Fi 6E, it offers fast, reliable networking for online gaming and streaming.
