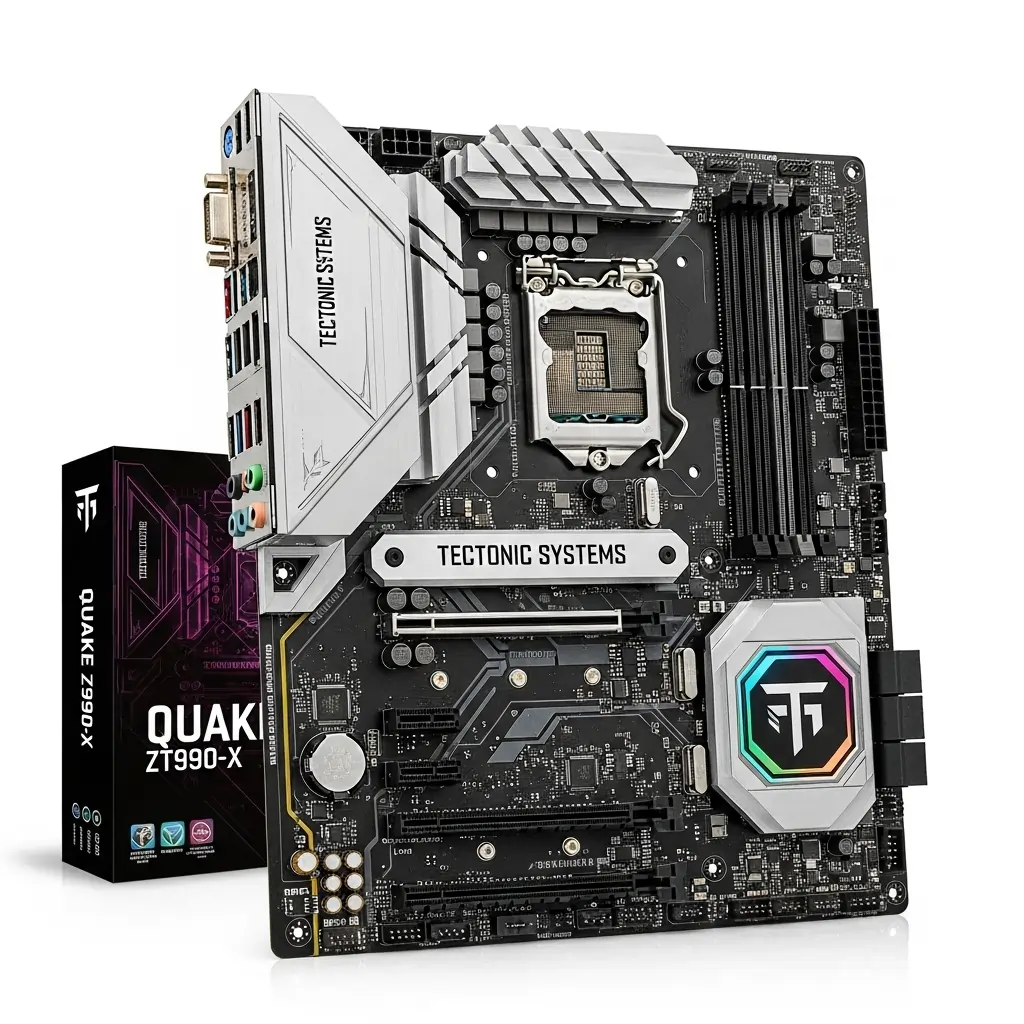

Tectonic Systems Quake ZT990-X

(20)

In Stock

| >10 in Storage

699€*

* +19% VAT and Delivery Costs

A high-end ATX motherboard for Zentheon processors, focusing on extreme stability, robust cooling, and a clean, powerful aesthetic for performance enthusiasts.

Technical Data

Socket	AMZ5
Chipset	ZT990 Enthusiast
Form Factor	ATX
Memory Support	4x DDR5, 192GB Max, Up to 7800+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode)
Storage M2	2x PCIe 5.0 x4, 3x PCIe 4.0 x4
Storage SATA	6x SATA 6Gb/s
Power Delivery	20+2 Phase, 90A Stages
Networking LAN	1x 5GbE
Networking WIFI	Wi-Fi 7
Audio	Tectonic RealAudio 7.1 HD
Rear IOPorts	1x USB 3.2 Gen 2x2 (Type-C), 7x USB 3.2 Gen 2, BIOS Flashback

Product Description

The Tectonic Systems Quake ZT990-X is built like a vault. Its primary focus is delivering unwavering power and thermal performance for sustained, high-end gaming and content creation. It features a formidable 20+2 phase VRM covered by massive, finned heatsinks that are interconnected via heatpipe. The entire M.2 and chipset area is covered by a single, heavy metal plate for thermal and structural integrity. With dual PCIe 5.0 M.2 slots, 5 GbE networking, and a minimalist, industrial design, it is the choice for builders who value substance and stability above all else.
